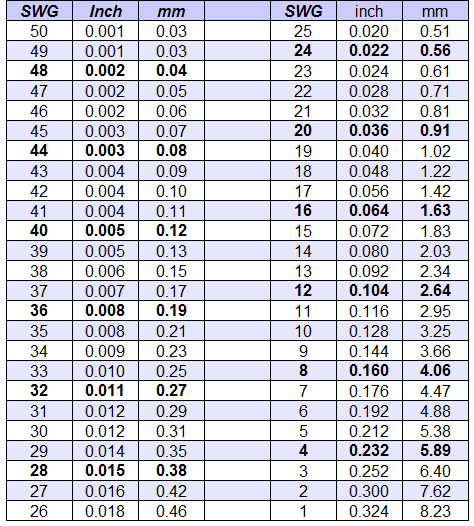

Standard Wire Gauge Table

Standard Wire Gauge

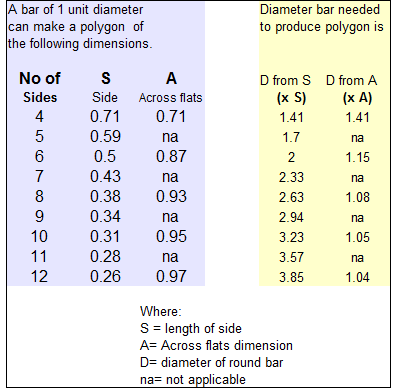

Polygons from Round Bar

Polygon Dimensions


Turning & Milling Speeds & Feeds

Speeds & Feeds


Morse Taper Dimensions

Morse Tapers


Piercing Saw Blade Sizes

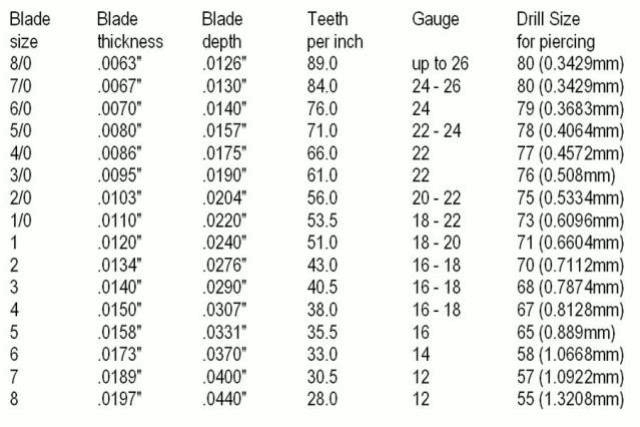

The chart below has information on piercing saw blades from size 8/0 (pronounced 8 aught) up to to size 8

Morse Tapers


Drill Chuck Taper Dimensions

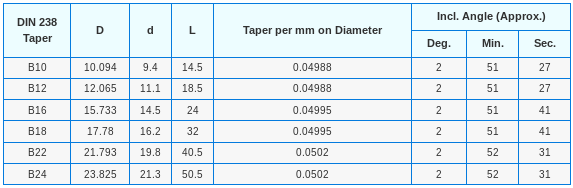

There are two commonly used tapers that are used to fit a drill chuck to an arbour Jacobs and DIN. The tables below give dimensions:

JT & DIN Dimensions

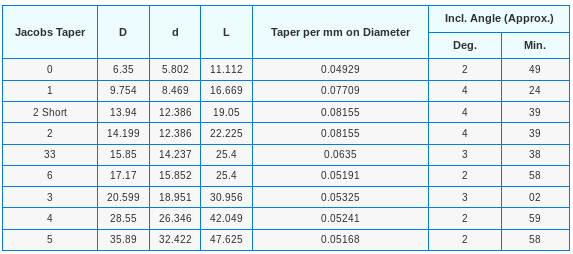

JT taper sizes

Standard Wire Gauge
